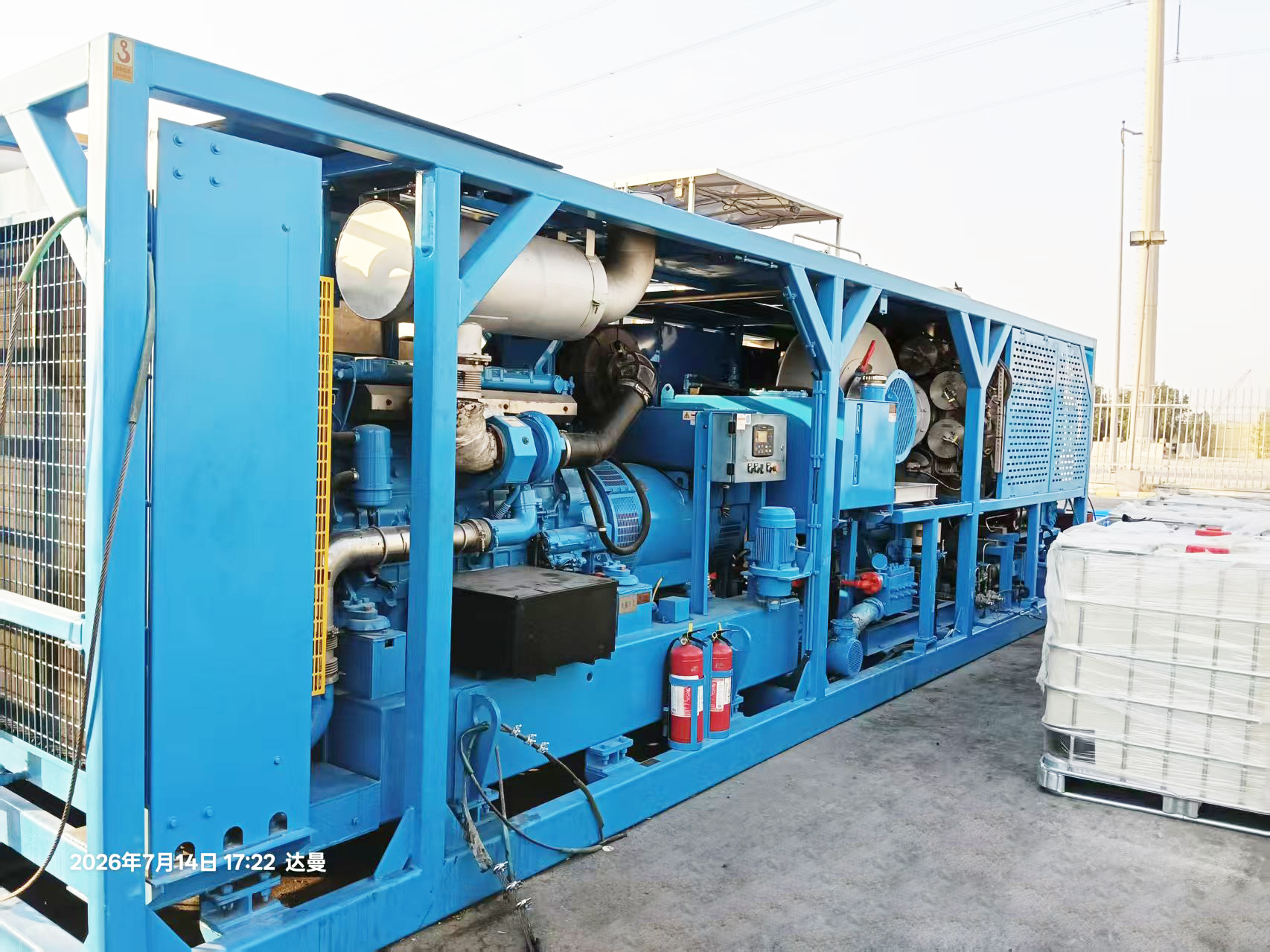

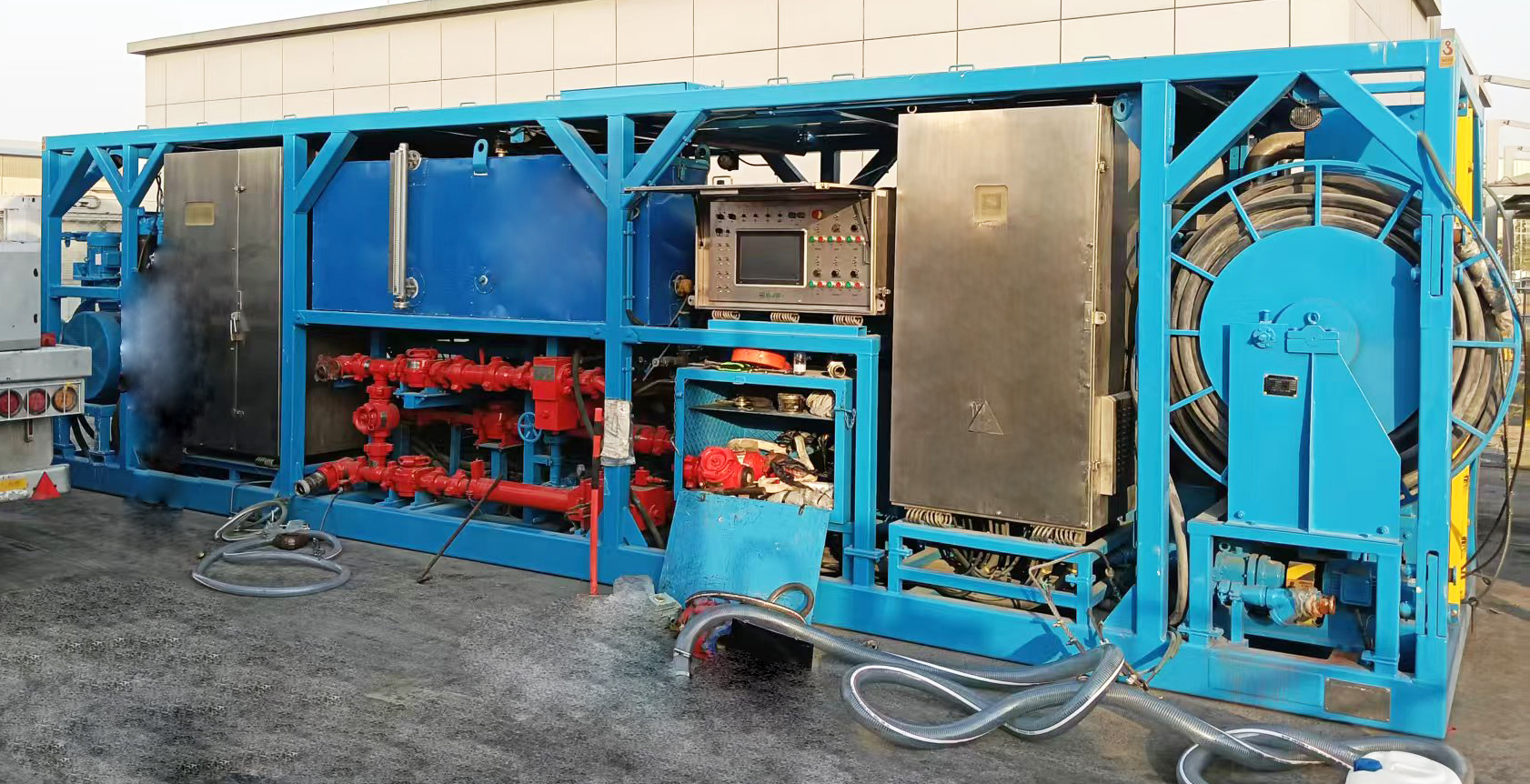

Foamed Cement Mix Skid Mounted System

Nitrogen Injection Foamed Cement Mix Skid Mounted

Foam cement cementing technology is mainly aimed at reducing the density of cement slurry and building with advanced ground devices. In order to solve the problem of one-time cementing leakage in low pressure and leaky wells, so as to effectively seal and protect oil and gas reservoirs, improve cementing quality and prolong the service life of oil wells. Foam cement is an ultra light cement. It can reduce the density of cement slurry very low and obtain higher strength. Its performance index can meet the requirements of oil well construction.

The main characteristics of foam cement cementing are:

1. Compared with other low density cement, it has lower density and higher strength.

2. The cement slurry possesses compressible elastic micro-bubbles. There is no “weightlessness” in the process of cement solidification, which has the effect of preventing gas channeling.

3. Compressible elastic bubbles can bond well between casing and cement slurry, cement slurry and borehole wall.

4. After the solidification of the foam cement, there is a small and uniform bubble in the cement ring. It has certain plasticity and is beneficial to perforation operation. It has the characteristics of low heat conductivity.

Main features of the equipment:

1. Attractive appearance, compact structure and safe operation.

2. Precise control, the key parts are imported high precision instrumentation, foam cement produced even and delicate.

3. Electronic control system, manual operation and double insurance are also available to ensure uninterrupted operation.

4. Pipelines and valves are all connected by nonyls, which is convenient for maintenance, disassembly and assembly.

5. Suitable for field work environment, moisture-proof, shock-proof, and equipped with heating and insulation system, the equipment runs steadily.

Technical parameters:

Outer size：4×2.4×2.4 m

Pressure：0-30Mpa

Nitrogen flow：3600Nm³/h

Fluid flow：1.8 m³/h
